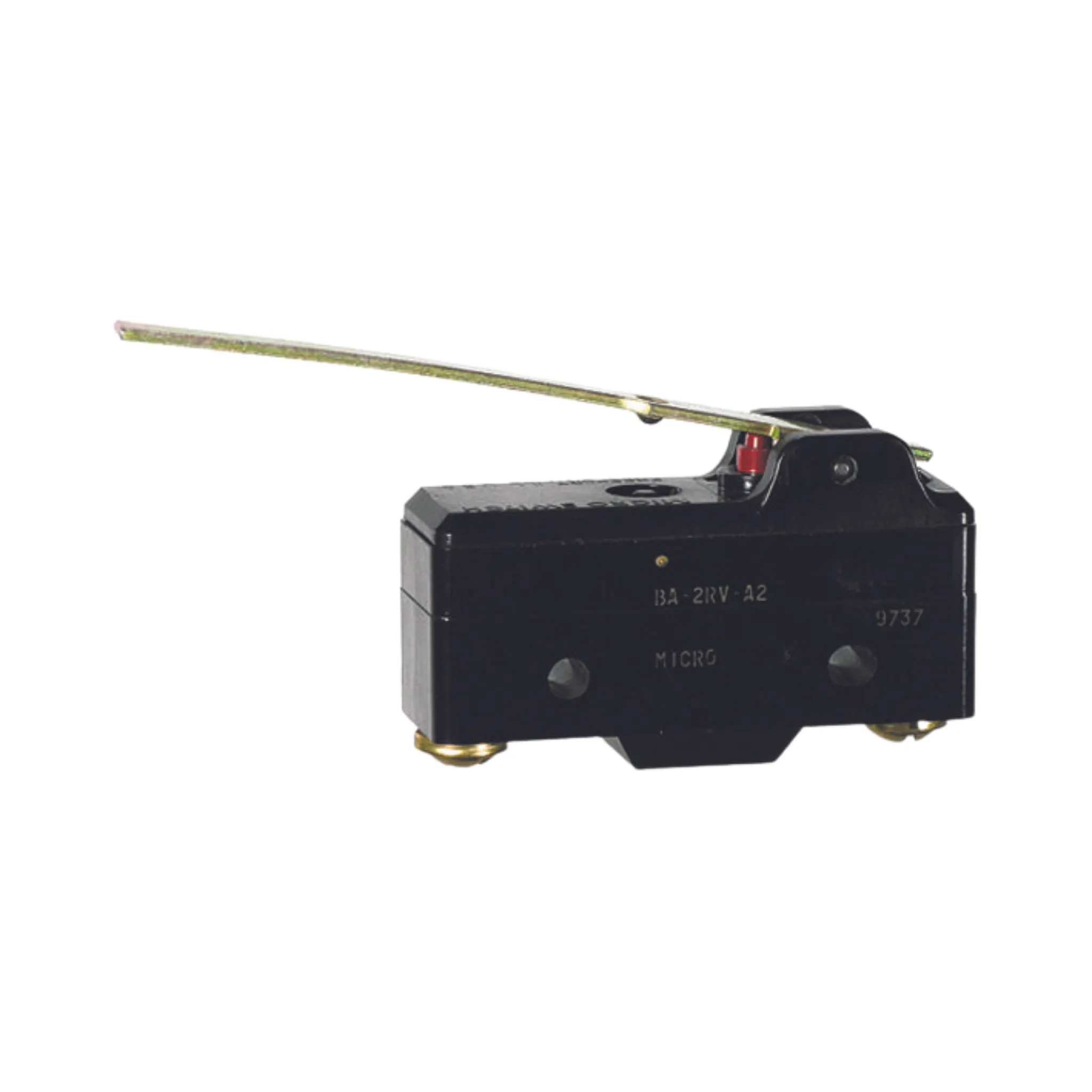

BA-2RV-A2 Snap Action Switch from Honeywell is a standard basic switch, designed for precision on or off applications. This SPDT Lever Switch delivers long mechanical life of up to 20,000,000 cycles at 95% survival rate. It also provides a range of actuation, termination and operating characteristics for design flexibility and high-performance. The current rating of this Honeywell Switch ranges from 15 A to 25 A.

Features:

Accepted world-wide standard "Large Basic" switch
Low operating force and differential travel
Long mechanical life up to 20,000,000 cycles at 95% survival
Elongated mounting hole for easier, more accurate mounting
Current rating ranges from 15 A to 25 A
Choice of actuation, termination and operating characteristics

Specifcations:

Manufacturer: Honeywell
Manufacturer Part Number: BA-2RV-A2
Mounting: Through Hole
Pole Throw Configuration: SPDT
Switch Configuration: N.O./N.C.
Actuator Material/Style: Lever
Contact Rating @ Voltage: 1491.4 A
Maximum Movement Differential: 2.77 mm
Operating Force: 0.7 N
Termination Style: Screw
Dimension: 76.28mm x 17.45mm x 44.07 mm
Body Orientation: Straight
IP Rating: N/A
